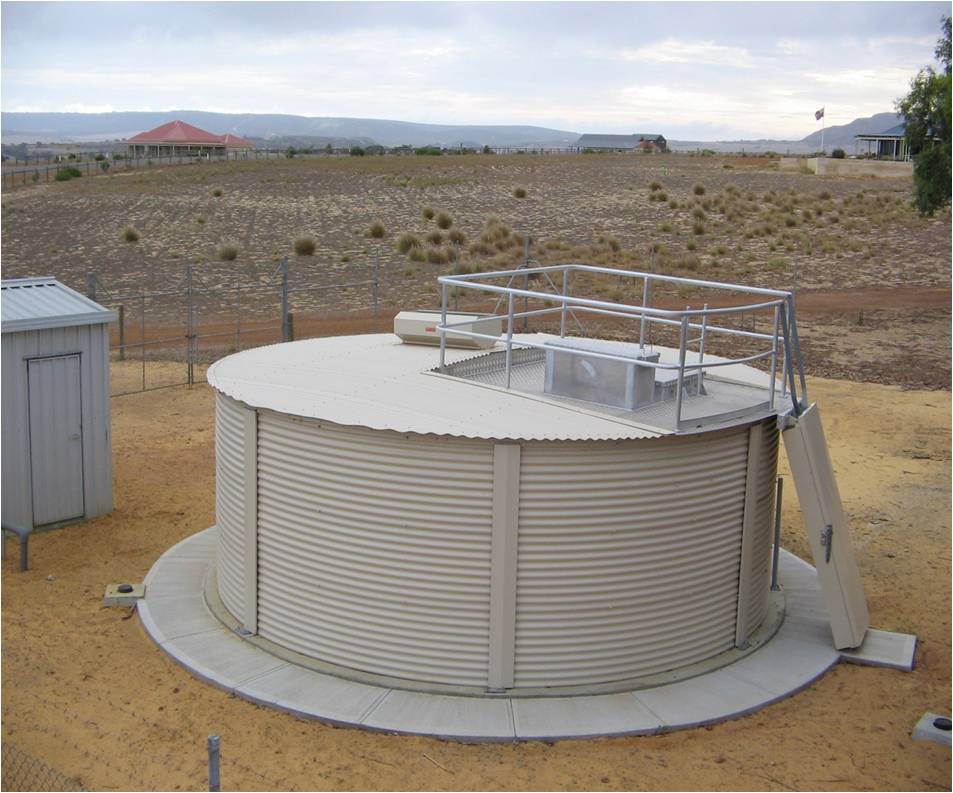

Zincalume Water Storage Tank

Reason to Choose ZA tank

• A. Cost: - These tanks have low cost as compared to the other available options in the market. Civil/SS/MS etc tank have higher cost as compared to Zinc alum tanks.
• B. Life span: - The life expectancy of these tanks is much higher than other tanks, as the decay due to the rust and environmental pollution is almost zero in these tanks. Their life expectancy is up to 30 - 50 years (depending on the nature of stored fluid).

• C. Light weight: - As these tanks have corrugated wall sheets, these corrugated profiles are set to provide maximum tensile strength, which results these tanks have light structural weight.
• D. Easy to relocate: -These tanks are prefabricated structures and assembled on site. The assembly of tank takes 3 to 5 days to construct the tank. Also, these tanks are completely tightened with High tensile 10.9/8.8 grade HDG nut bolts, so they can relocate easily with very less hassles.
• E. Self-healing: - The wall sheet & roof sheet structure is provided with AZ150 Zincalume material of TATA BLUE SCOPE/JSW which provide the uniform coating of 20 micron all around the sheet. This coating has self-healing properties which helps to provide maximum life for the tank.
• F. Food grade: - The internal PVC reinforced liner is available with option of food grade and non-food grade material which results to make these tanks usable for drinking/hotels etc purposes.
• G. Installed location: - These tanks can be installed as 1. Underground tank 2. Overhead tank 3. Elevated tank 4. On the ground Tank There are lots of parameters on which these tanks are replacing the old way of water storage like RCC/MS/PVC tanks.

• 1. Firefighting reservoir.
• 2. Drinking water.
• 3. Acidic and base nature of liquid.

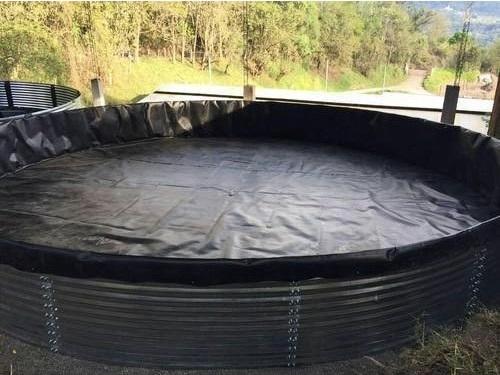

• 4. Fish tank
• 5. Agriculture water storage tank.
• 6. RO water tank
• 7. Water treatment plants.
• 8. Hospitals
• 9. Hotels
• 10. Construction sites
• 11. JJM PROJECT.
• 12. Rain Water Harvesting.

Parts of construction:

There are a number of parts and accessories used to complete a ZA tank, some of the major parts are elaborate below;

• 1. Wall Sheet – We always uses the wall sheets of TATA BLUE SCOPE/JSW make. Both the Companies are well known and committed for their unbeatable quality. Wall sheet have corrugated profile which provides it the extensive quality of Highest tensile strength. Wall sheets are coated with a mixture of Zinc & aluminium and available in G300 - AZ 150/AZ 200 coating standard. ZINCALUME® steel complies with AS1397, ASTM A792M, IS 15961 and ISO 9364 standards. The wall sheets are available in 0.8 mm & 1.12 mm thicknesses which are fused to make desired thickness of sheet.

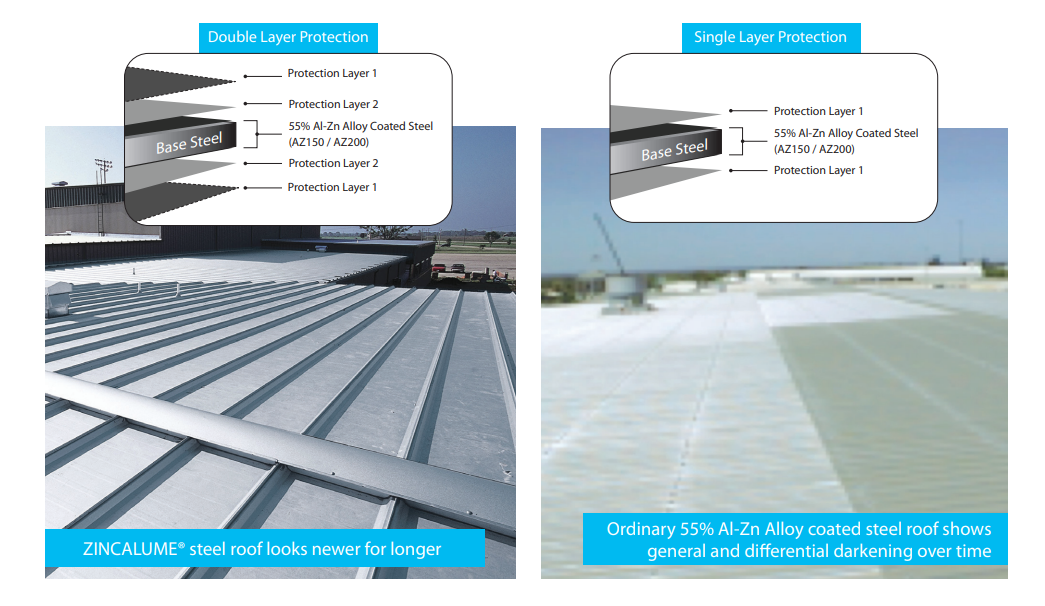

• 2. Roof Sheet- We uses roof sheets of TATA BLUE SCOPE/JSW make. The roof sheets available in 550 MPA and available thickness 0.47 mm & 0.6 mm. As of wall sheet roof sheets also coated with AZ 150 coating and standards.Roof sheets are corrugated sheets and used to cover the top of the tank.
• 3. PVC Reinforced Liner: - The PVC Liner are made up of high tenacity polyester filament yarn. The specification is as per the IS 7016 Part1- 1982. We preferred the good quality PVC Fabric which is SRF/Sioen make, along with these two most favourable brands we also manufacture the HDPE liner/Metallocene/food grade/non food grade. Depending upon the application and requirement of customer. Liner fabric available in various GSM we use a range of 550 GSM to 1360 GSM depending upon the requirement of customer. We have the 12 years experienced team for liner manufacturing as this is the most critical part of the tank. Our team precisely cut the material and manufacture the liner, after that the liner is go through the dimensional inspection and light reflection test.

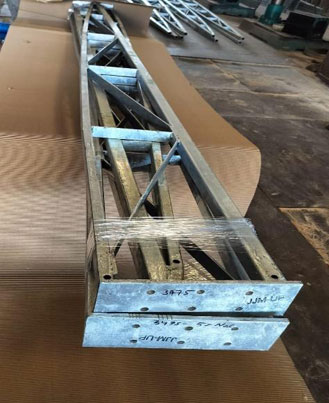

• 4. TRUSSES: - The truss is the main part of the top structure. During the designing of tank, the truss is the 2nd important part after wall sheet. Our design team consider all the aspects while designing the tank like Seismic zone, wind velocity, atmospheric pressure etc. The trusses are made up of Square hollow pipe and Square rectangular pipe follows IS:4923 and some other parts like flats, ISA.

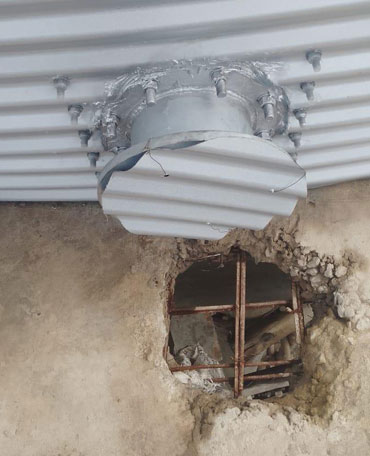

• NOZZLES: - The flow of Water in Tanks takes place through the nozzles. We manufacture the nozzles in Various market standards Like
  BS10 Table D,
  BS10 Table E,
  ANSI B16.5 CLASS 150,
  PN10,
  PN16 and others
  Apart from this, Nozzles are available in MS, MS Rubber Lining, SS, MS HDG.
